| 功率 | 38.6 |
|---|---|
| 结构类型 | 半封闭式 |
| 类别 | 冷风机 |
| 品牌 | LeT |
| 型号 | LeT |
| 加工定制 | 是 |

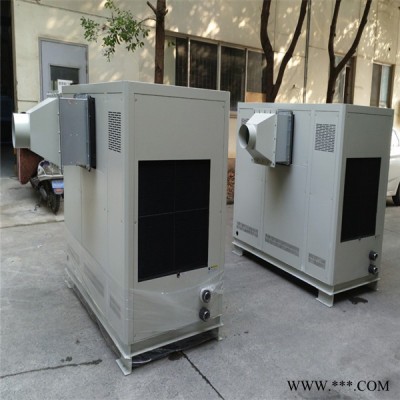

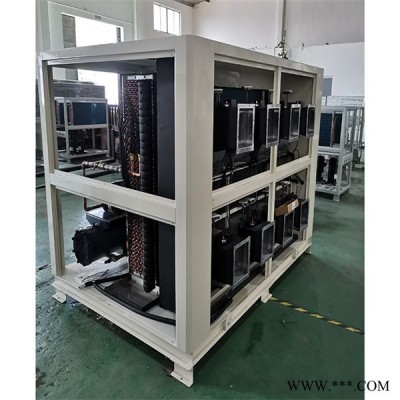

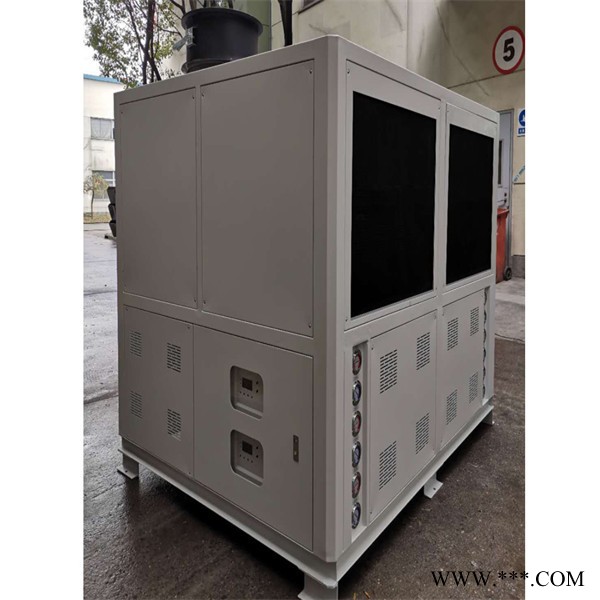

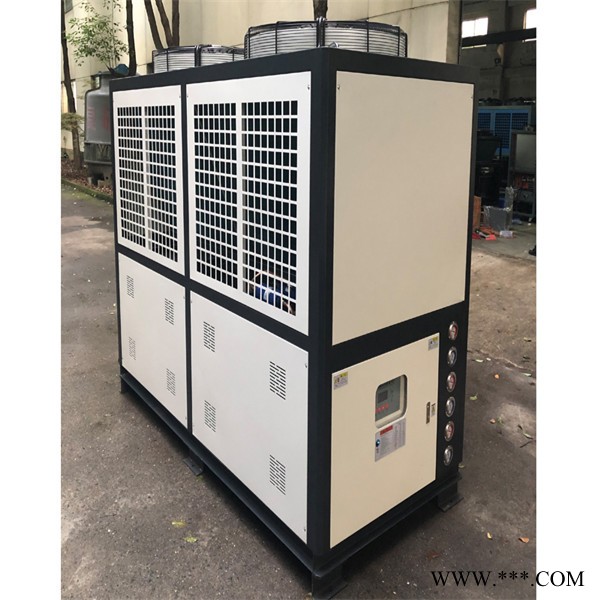

| 乐添水冷式冷风机组特点： | |||||||||
| 机组保护功能齐全，标配逆缺相、高低压、热过载、防冻保护等 | The unit include inverse phase,high and low pressure,thermal overload,low level,antifreeze protection,etc | ||||||||
| 采用高强度整体焊接框架 | The unit use high strength welded frame | ||||||||
| 采用欧美日进口品牌压缩机 | imported brand compressor from Europe and Japan | ||||||||
| 水箱及水管路部分采用不锈钢SUS304 | The water tank and water pipe made of stainless steel SUS304 | ||||||||
| 制冷阀件采用丹佛斯、艾默生、斯波兰等知名品牌 | The refrigeration valve from Danfoss,Emerson,Sporlan and other well-known brands | ||||||||
| 电气部件采用ABB、西门子、施耐德等知名品牌 | Electrical components supplied from ABB,SIEMENS,Schneider and other famous brands | ||||||||
| 标配远程开关机接口及综合故障传输接口、可选Rs485等通讯功能 | The standard unit has remote switch interface and fault transmission interface,Rs485 communication function is optional | ||||||||
| 控制方式采用微电脑自动控制或PLC控制 | Adopts microcomputer automatic control or PLC control | ||||||||
| 冷媒可选R22、R407C、R404A、R134A、R410A等 | Other refrigerants can be selected,such as R22,R407C,R404A,R134A,R410A etc | ||||||||
| 蒸发器可选不锈钢板式、壳管式、盘管式、耐酸碱防腐蚀型等不同种类 | Other evaporator type can be selected,such as stainless steel plate heat exchanger, shell and tube type,coil type and Acid and alkali resistant type | ||||||||
| 默认框架颜色 整机电脑灰 | Default fame color machine compute gray | ||||||||
| 水冷式冷风机技术参数表1 | |||||||||
| 项目 | 单位 | LTLF-03W | LTLF-04W | LTLF-05W | LTLF-06W | LTLF-10WD | LTLF-15WD | LTLF-20WD | |
| 制冷量 | Kcal/h | 8514 | 10922 | 13158 | 17028 | 26316 | 41108 | 55900 | |
| kW | 9.9 | 12.7 | 15.3 | 19.8 | 30.6 | 47.8 | 65 | ||
| 总输入功率 | kW | 2.7 | 3.2 | 4.0 | 4.6 | 7.7 | 11.3 | 14.9 | |
| 最大运行电流 | A | 9 | 12 | 14 | 16 | 26 | 38 | 46 | |
| 冷媒 | | R22 | |||||||
| 运行控制方式 | | 温度数显微电脑控制器 | |||||||
| 电源 | | 3N,380V,50Hz | |||||||
| 安全保护装置 | | 过载保护、逆缺相保护（3相）、高/低压保护、防冻保护等 | |||||||
| 压缩机 | 形式 | | 全封闭转子式或涡旋式 | ||||||
| 压缩机功率 | kW | 2.13x1 | 2.64x1 | 3.29x1 | 3.82x1 | 3.29x2 | 3.75+7.5 | 6.53x2 | |
| 冷凝器 | 形式 | | 壳管式（水侧标准承压0.6MPa-0.8MPa） | ||||||
| 水流量 | M3/H | 2.1 | 2.7 | 3.3 | 4.3 | 6.6 | 10.3 | 14.0 | |
| 进出管径 | Inch | 1.0 | 1.0 | 1.0 | 1.0 | 1.5 | 2.0 | 2.0 | |
| 蒸发器 | 形式 | | 铝翅片套铜管式 | ||||||
| 空气流量 | M3/H | 300 | 400 | 500 | 600 | 1000 | 1500 | 2000 | |
| 风机余压 | Pa | 200 | 200 | 200 | 200 | 300 | 400 | 400 | |
| 出风管径 | mm | 150/200 | 150/200 | 150/200 | 150/200 | 200/250 | 200/250 | 200/250 | |
| 外形尺寸 | | | |||||||
| A（长）L | mm | 900 | 900 | 900 | 900 | 1200 | 1700 | 1700 | |
| B（宽）W | mm | 500 | 500 | 500 | 500 | 700 | 850 | 850 | |
| C（高）H | mm | 1000 | 1000 | 1000 | 1000 | 1300 | 1650 | 1650 | |
| 整机重量 | kg | 130 | 140 | 150 | 200 | 300 | 400 | 440 | |
| 冷媒充填量 | kg | 1.7 | 2.2 | 2.8 | 4.5 | 5.6 | 8.4 | 11.2 | |
| 水冷式冷风机技术参数表2 | |||||||||
| 项目 | 单位 | LTLF-25WD | LTLF-30WT | LTLF-36WT | LTLF-40WF | LTLF-50WF | LTLF-60WG | LTLF-72WG | |
| 制冷量 | Kcal/h | 64156 | 83850 | 96234 | 111800 | 128312 | 163400 | 192468 | |
| kW | 74.6 | 97.5 | 111.9 | 130 | 149.2 | 190 | 223.8 | ||
| 总输入功率 | kW | 16.6 | 22.6 | 26.2 | 30.1 | 33.6 | 50 | 60 | |
| 最大运行电流 | A | 52 | 69 | 81 | 92 | 104 | 126 | 150 | |
| 冷媒 | | R22 | |||||||
| 运行控制方式 | | 温度数显微电脑控制器 | |||||||
| 电源 | | 3N,380V,50Hz | |||||||
| 安全保护装置 | | 过载保护、逆缺相保护（3相）、高/低压保护、防冻保护等 | |||||||
| 压缩机 | 形式 | | 全封闭转子式或涡旋式 | ||||||
| 压缩机功率 | kW | 7.41x2 | 6.53x3 | 7.41x3 | 6.53x4 | 7.41x4 | 7.5x6 | 9.0x6 | |
| 冷凝器 | 形式 | | 壳管式（水侧标准承压0.6MPa-0.8MPa） | ||||||
| 水流量 | M3/H | 16.0 | 21.0 | 24.1 | 28.0 | 32.1 | 40.9 | 58 | |
| 进出管径 | Inch | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 4.0 | |
| 蒸发器 | 形式 | | 铝翅片套铜管式 | ||||||
| 空气流量 | M3/H | 2500 | 3000 | 3600 | 4000 | 5000 | 6000 | 7200 | |
| 风机余压 | Pa | 400 | 500 | 500 | 500 | 500 | 600 | 600 | |
| 出风管径 | mm | 200/250 | 200/250 | 200/250 | 250/300 | 250/300 | 300/350 | 300/350 | |
| 外形尺寸 | | | |||||||
| A（长）L | mm | 1700 | 2200 | 2200 | 2400 | 2400 | 2400 | 2800 | |
| B（宽）W | mm | 850 | 1100 | 1100 | 1100 | 1100 | 1300 | 1600 | |
| C（高）H | mm | 1650 | 2000 | 2000 | 2000 | 2010 | 2010 | 2100 | |
| 整机重量 | kg | 620 | 690 | 760 | 950 | 1000 | 1100 | 1400 | |
| 冷媒充填量 | kg | 13.6 | 16.8 | 20.4 | 22.4 | 27.2 | 34.0 | 40.8 | |
| 备注 | 1.以上参数基于冷冻风进/出风温度为15℃/10℃，环境温度35℃。 | ||||||||
| 2.本公司保留更改上述参数而不另行通知的权利。 | |||||||||
