别名:小盘纸分切机
类型:自动
起订:1台
供应:25台
发货:10天内
| 别名 | 小盘纸分切机 |
|---|---|
| 类型 | 自动 |
| 用途 | 盘纸分切设备 |
| 自动化程度 | 全自动 |
| 包装类型 | 裸装 |
| 品牌 | 中顺机械 |
| 型号 | ZSXP-1880 |
| 加工定制 | 是 |

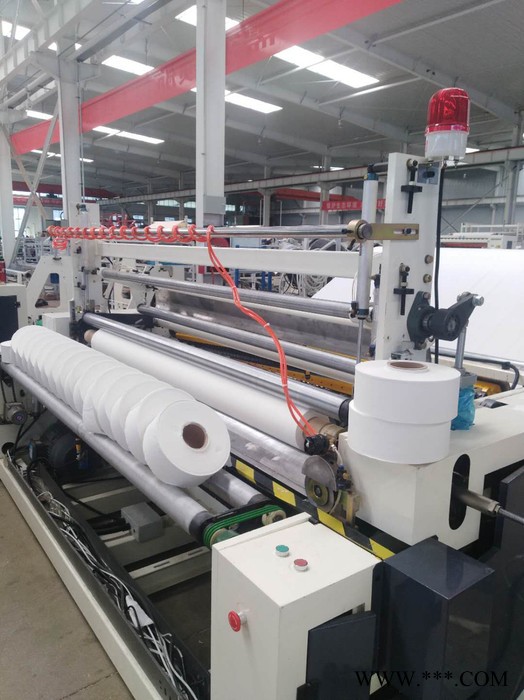

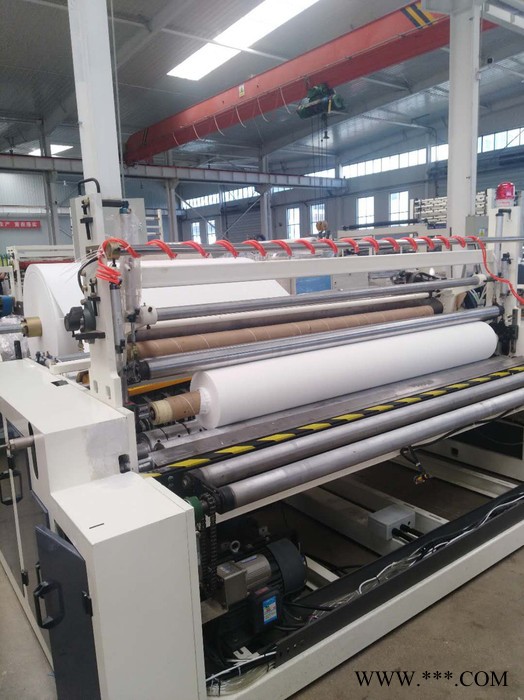

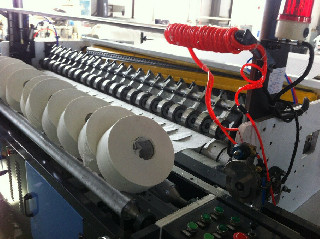

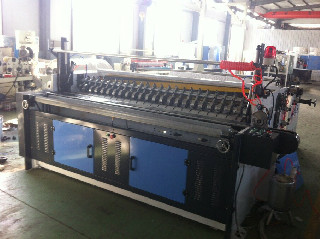

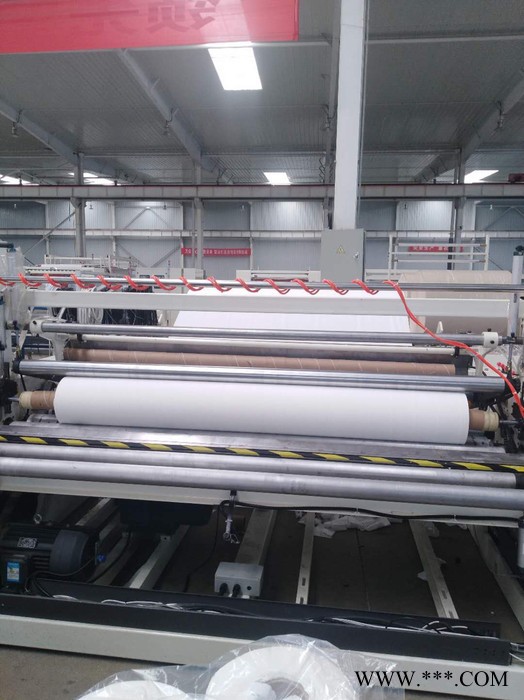

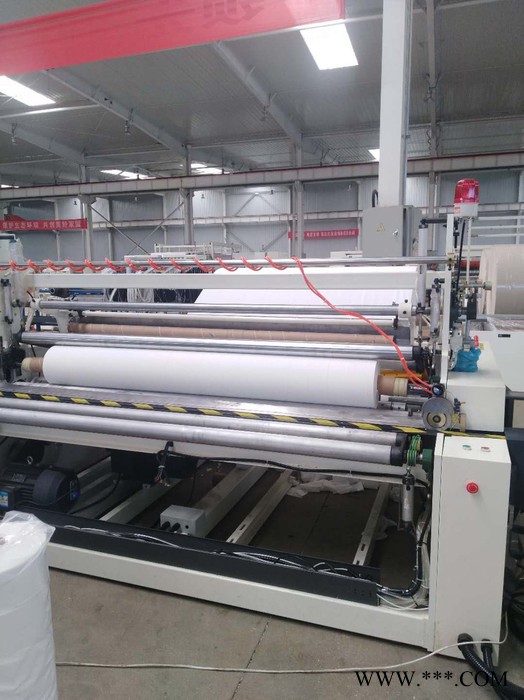

ZSXP-B-1880/3150小盘纸复卷机
ZSXP-B-1880/3150 JRT/Industrial Roll Rewinder

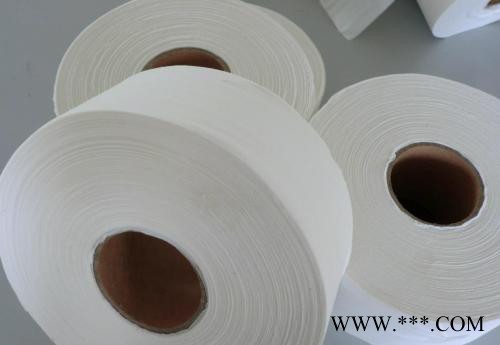

ZSXP-B小盘纸分切复卷机是生产小盘纸和卷筒擦手纸两用设备,可在短时间内随意更换;具有压花、打孔、分切和复卷一次完成的功能,带气动上纸、气动皮带传动、松緊调节等装置,采用气胀轴和无气涨轴两种收卷方式.
主要特点:
1、 采用气胀轴收卷,使纸管定位准确简便;
2、 无气涨轴收卷，操作更方便，减轻劳动强度。
3、压边系统;采用钢对钢压边,独立气缸调节,方便调节,达到每层纸不分层;
4、卧式退纸架,气动上纸,气动式宽皮带送纸,每卷原纸均有独立张力调整装置;
5、采用前后点动开关牵引原纸,操作更简便、安全.
6、根据客户所需,增加修边喷胶封口功能。
ZSXP-B Industrial Roll Slitting Rewinder can make both JRT industrial roll and rolled hand towel, it's easy to change in a short time With edge embossing, perforating, slitting and rewinding functions. Pneumatic control jumbo roll loading, belt driving and web tension control devices. The finished roller rewind by air-fill shaft or shaftless.
Main Features:
1. With air-fill shaft to rewind the finished products. the orientation of core easy and nicety.
2. No air shaft winding, more convenient operation, reduce labor intensity.
3. Edge embossing unit: Adopt steel to steel edge embossing, independent cylinder controlling, easy to additionust, everylayer not separate:
4. Horizontal style unwinding stand, pneumatic jumbo roll loading, pneumatic belt driving, each jumbo roll with individual tension adjust device
5. Using front and rear inching switch to traction base paper, operation more simple and safe
6. As required by customer, it can add tail sealing function.
| 技术参数 | ||||||
| 机器型号 Machine Model | 1575 | 1880 | 2400 | 2600 | 3150 | 3500 |
| 原纸宽度(mm） Raw Material Width | 1800 | 2100 | 2400 | 2500 | 3000 | 3500 |
| 成品直径(mm） Finished Roll Diameteo | Φ90~300(松紧可调） Φ90-300 mm(Tightness adjustable) | |||||
| 原纸直径(mm) Raw Material Diameter | Φ1100(其他规格请指定) Φ1100 mm(Other sizes are available） | |||||
| 原纸纸芯内径 Raw Material Core Diameter | 76.2mm(其它规格请指定) (76.2 mm）(other sizes are available） | |||||
| 打孔节距(mm) Perforation (to be appoint) | 90-160mm | |||||
| 加工能力 Speed | 180-200米/分钟 180-200m/min | |||||
| 收卷 Rewinding | 气涨轴 By air- shaft | |||||
| 压花系统 Embossing Unit | 单压花,双面压花,钢对钢压花 Single ply embos- sing, double ply embossing, steel to steel embossing | |||||
| 压花底辊 Bottom Embossing Roller | 毛布辊,羊毛辊,胶辊 Felt roller, Paper roller, Rubber roller | |||||
| 退纸架 Unwinding Unit | 1-3层(层数请指定） 1-3ply | |||||
| 压光 Calendaring Unit | 钢对钢,钢对胶 Steel to steel, steel to rubber | |||||
| 气动系统 Pneumatic system | 3匹空压机,压力5kg/cm2Pa(客户自备) 3 HP air compressor, Mini pressure 5kg/cm Pa(Provided by clienti) | |||||
